Reporting

The following features have recently been added to the software (ARG 2.0):

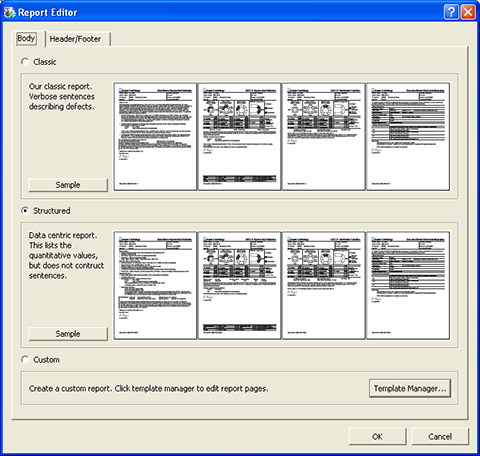

• Customizable reports. This feature includes:

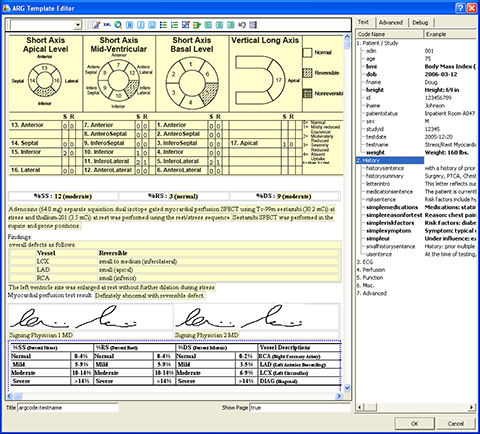

  • Visual report editor
  • Powerful sentence generator/editor

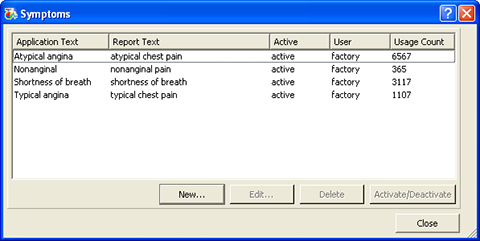

  • Customizable selection boxes
• Inclusion of screenshots in the report
• Easy setup and configuration wizard

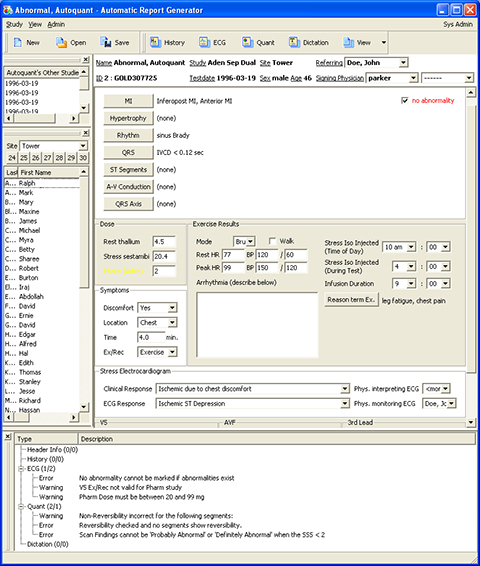

ARG offers several features to improve reading room workflow:

• A series of consistency checks are used to ensure the report does not contain conflicting information.
• By eliminating the need for the traditional lengthy process of dictating, transcribing, reviewing and revising reports, ARG cuts turnaround time and delivers same-day reporting.
• Utilizing ARG's client server architecture, all physicians, technologists, system administrators and administrative personnel are able to work collaboratively on each patient's study simultaneously.

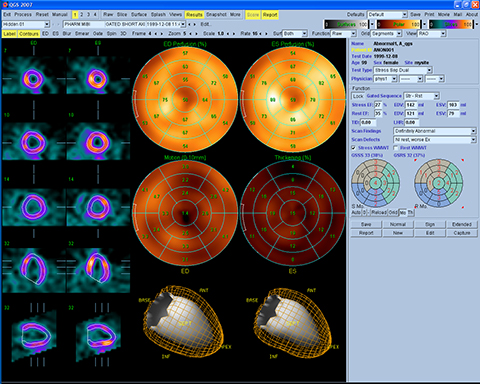

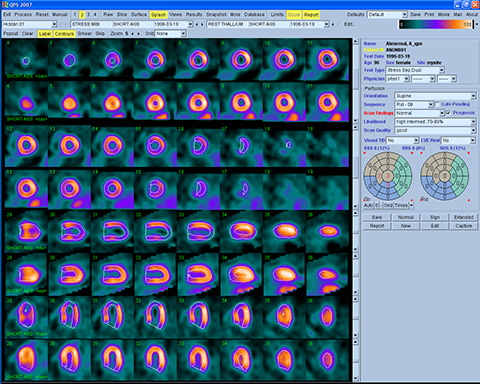

• Full integration with our myocardial perfusion quantitative applications (AutoQUANT, QPS and QGS) further reduces the risk of errors and improves the nuclear cardiologist's reading room workflow.
• The system generates an ICANL-compliant report.

QARG extends the functionality of ARG by adding the following features:

• The ability to include and edit history and ECG information in the report.
• An interface to allow searching of old reports.
• The ability to generate ASCII Text reports, which can easily be uploaded to HIS/RIS systems.

• ARG 2.0 using only QPS and QGS: [PDF]
• ARG 2.0 using QPS, QGS and QARG (classic): [PDF]
• ARG 2.0 using QPS, QGS and QARG (structured): [PDF]
• ARG 2.0 using QPS, QGS and QARG (signed): [PDF]
• ARG 1.0 Sample - unsigned: [PDF]
• ARG 1.0 Sample - signed: [PDF]

Information regarding the availability of ARG and QARG can be found here.
